Magnesium plates
with Optimag® or HydroSolve® coating
| Thickness | Width / length (mm) | Sheets / package | Weight / sheet (kgs) |
| 1.00 mm | 360 360 360 560 360 700 457 610 610 762 610 914 762 1016 | 40 40 40 50 40 50 30 | 0.24 0.36 0.45 0.50 0.82 0.99 1.36 |
| 1.50 mm | 500 1000 | 25 | 1,34 |
| 1.63 mm | 610 914 | 25 | 1,62 |
| 1.75 mm | 500 650 610 914 | 25 25 | 1.01 1.73 |
| 2.00 mm | 500 650 610 914 | 25 25 | 1.16 1.98 |
| 2.50 mm | 610 914 | 20 | 2,48 |
| 3.00 mm | 500 650 610 914 | 15 15 | 1.74 2.97 |
| 4.00 mm | 500 650 610 914 | 12 13 | 2.31 3.96 |
| 4.50 mm | 610 914 | 13 | 4,47 |
| 5.00 mm | 500 650 610 914 | 10 10 | 2.89 4.95 |
| 6.35 mm | 610 457 610 914 762 1016 | 16 8 5 | 3.15 6.29 8.75 |
| 7.00 mm | 500 650 500 700 610 914 762 1016 | 7 7 7 5 | 4.05 4.36 6.94 9.65 |

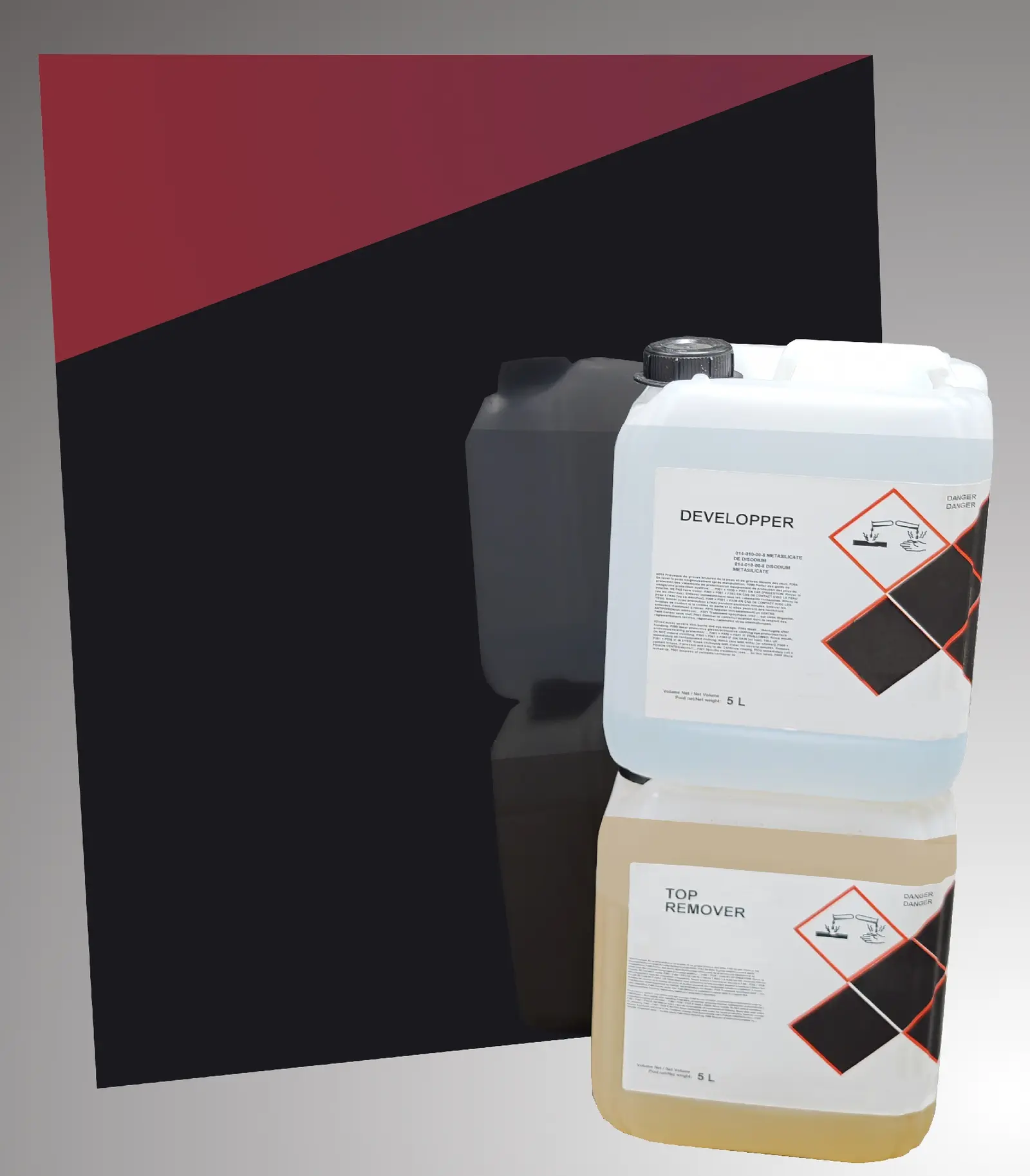

Chemistry
We supply all chemical products for etching technology and guarantee the highest quality for the best results. Our chemicals are perfectly tailored to the requirements of etching processes and enable precise and efficient processing. Put your trust in our expertise and benefit from reliable products that meet the highest standards.
Patrices
Our male die material is ideal for the production of blind embossing dies, both for flat and round embossing. It is ground on one side to ensure optimum interlocking with the special epoxy resin and thus achieve maximum precision and durability. In addition, the material is characterized by excellent temperature resistance, making it a reliable choice for demanding applications.
| Thickness | Width / Length (mm) | Sheets / package | Thickness tol. | Weight / sheet (kgs) |
| 0,30 mm | 530 2070 | 1 | +/- 0.05 mm | 0,60 |
| 0.50 mm | 530 2070 | 1 | +/- 0.05 mm | 1,00 |
| 1.00 mm | 530 2070 | 1 | +/- 0.05 mm | 2,00 |
We also offer the necessary additives for production and processing to match our male part material:
- Resin and hardener
- Color pastes
in red, blue and other colors on request, for individual adjustments - Release agent
Our supplementary products provide you with everything you need for professional and efficient production.
Brass plates
Our brass plates are especially suitable for cliché production. They are thermally relaxed and guarantee high dimensional accuracy and excellent machinability.
They are coated on one side with a protective film to protect them from external influences and scratches.
| Thickness | Length / width (mm) | Weight / sheet (kgs) | Thickness tol. | Protective film |
| 1.00 mm | 500 600 | 2,55 | ||
| 5.00 mm | 500 600 | 12,6 | +/- 0.08 mm | yes |
| 7.00 mm | 500 600 600 700 | 18.17 25.00 | +/- 0.08 mm +0.2 / -0 mm | yes yes |
Magnesium plates
Magnesium plates are an inexpensive alternative to brass plates. They are particularly suitable for small runs, as magnesium has a lower strength and shorter service life compared to brass.
| Thickness | Width / length (mm) | Sheets / package | Weight / plate (kgs) |
| 1.00 mm | 360 360 360 560 360 700 457 610 610 762 610 914 762 1016 | 40 40 40 50 40 50 30 | 0.24 0.36 0.45 0.50 0.82 0.99 1.36 |
| 1.50 mm | 500 1000 | 25 | 1,34 |
| 1.63 mm | 610 914 | 25 | 1,62 |
| 1.75 mm | 500 650 610 914 | 25 25 | 1.01 1.73 |
| 2.00 mm | 500 650 610 914 | 25 25 | 1.16 1.98 |
| 2.50 mm | 610 914 | 20 | 2,48 |
| 3.00 mm | 500 650 610 914 | 15 15 | 1.74 2.97 |
| 4.00 mm | 500 650 610 914 | 12 13 | 2.31 3.96 |
| 4.50 mm | 610 914 | 13 | 4,47 |
| 5.00 mm | 500 650 610 914 | 10 10 | 2.89 4.95 |
| 6.35 mm | 610 457 610 914 762 1016 | 16 8 5 | 3.15 6.29 8.75 |
| 7.00 mm | 500 650 500 700 610 914 762 1016 | 7 7 7 5 | 4.05 4.36 6.94 9.65 |
